Process System Skid

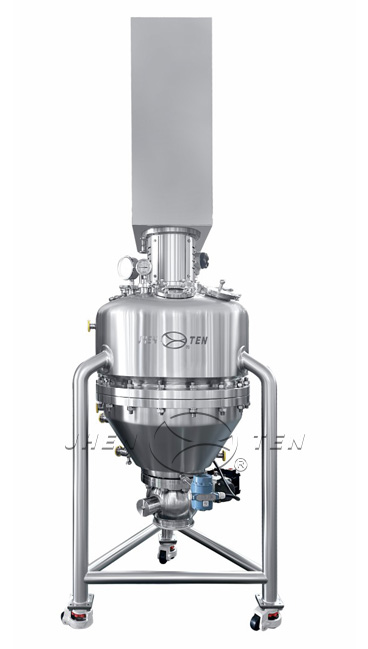

Conical Bottom Agitated Filter Dryer
Model: JTNB-T
Brand: JHENTEN
Detail Description
ADVANTAGE
◆Excellentproduct discharge performance with negligible product hold-up due to theconical bottom,

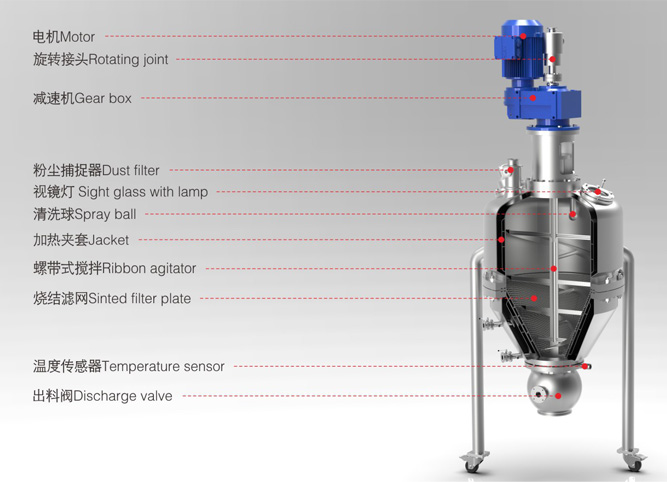

◆Close agitator to wall /bottomclearances and a unique agitator
design.
◆Theagitator permits uniform mixing of the entire product mass, without theformation of lumps or balls. The slow rotation of the agitator minimizes theshear forces applied to the product, thus limiting mechanical and thermalproduct degradation, maintaining the products original crystal structure.
◆The surface area for heattransfer is maximized for optimum
performance and cycle times.
◆In compliance with cGMP andFDA guidelines, also in aseptic
/steam sterilizable versions:
◆Agitatorsupported by the top head, with the seal in contact with the vapors only.
◆Entirely welded agitatordesign, without any bolts, with all edges
rounded for good cleanability.
◆Excellentcleanability using CIP Systems, with simple validation process.
FEATURES
Design Code | GB/ASME/PED/AD2000 etc. |
Product volume | 135-14000 liters |
Operating temperature | -10 to 151°C (15 to 300°F) or per requirements |
Operating pressure | -1 to +6 bar (g) (FV to90 psig) or per requirements |
Product wetted material | Stainless steels,Duplexstainless, Nickel based alloys such asHastelloy C22/C276, Titanium, etc., |
Sealing materials | PTFE gaskets, O-Rings inFFKM or FEP encapsulated |
Area classification | GB/ATEX/UL/GOST |
Heated areas | All product wettedcomponents,dust collector, including agitator shaft and blades |
Accessories | Dust filterwith automatic backcleaning, sampling valve,CIP system, sightglass with lamp,vacuum system with condenser, heating and cooling unit etc. |
Controls | Control cabinet, HMI,MCC, interface for DCS, can realize computer verification. |
Documents | DQ,IQ,OQ,PQOperate manual,DQ,IQ,OQ,PQ |
SELECTION FORM
Model | Diameter (mm) | Filter area (m2) | Full volume | Equipment width | Totalheight of equipment | Motor power | Equipment net weight |
JTNB-T550 | 550 | 0.4 | 0.135 | 750 | 1850 | According to the | 0.7 |
JTNB-T700 | 700 | 0.7 | 0.32 | 1100 | 2500 | 1 | |
JTNB-T1000 | 1000 | 1.4 | 0.87 | 1280 | 2850 | 2.3 | |
JTNB-T1200 | 1200 | 2.1 | 1.5 | 1630 | 3500 | 2.7 | |
JTNB-T1400 | 1400 | 3 | 2.5 | 1850 | 4150 | 3.5 | |
JTNB-T1600 | 1600 | 3.8 | 3 | 1900 | 4200 | 4.3 | |
JTNB-T1800 | 1800 | 4.8 | 5 | 2300 | 4800 | 5.7 | |
JTNB-T2000 | 2000 | 6.1 | 6.2 | 2500 | 5800 | 8.4 | |
JTNB-T2200 | 2200 | 7.3 | 8.5 | 2700 | 6300 | 10 | |
JTNB-T2400 | 2400 | 8.8 | 10.8 | 3000 | 6800 | 13.6 | |
JTNB-T2600 | 2600 | 10.2 | 14 | 3200 | 7200 | 17 |
Note: Equipment of different specifications can be designed according tothe special needs of users.
