Tube Filtration
Tube Filter Housing
Model: JTGTF
Brand: JHENTEN
Simple Tube Filter
Detail Description
JTGTF Tube Filter Housing is a improved small tube strainer which can remove a small amount of solid particles in the liquid, also can protect compressor, pump, instruments and other equipment to work normally.
JTGTF Tube Filter Housing using multichannel polishing processing to ensure the interface surface roughness Ra≤0.4um,compliance with GMP/FDA requirement . All of the surface is mirror polished.
Feature
The filter inner and outside surface using mirror polish, interface surface roughness Ra≤0.4um,compliance with GMP/FDA requirement .
Filter housing adopts quick connection, easy to handle, economical and practical.
Application
All kinds of liquid particle filtering
Edible oil, beverage, wine filtration
Chemical filter
Compressors, pumps, instrumentation and other equipment pre-filtering and protection.
Surface Finish
Finish Type | Mechanical polishing, electrolytic polishing, sand blasting, pickling |
Polishing precision |
iInner surface Ra≤0.6μm , |
Operating Conditions
Max Operating Pressure | 0.6MPa, 1.0MPa |
Max Operating Temp. | 150℃ |
Material
Filter shell | 304, 316L |
Screen filter | 304, 316L |
Quick-open | 304 |
O-ring | EPDM, PTFE, Viton, Silicone |
Connection
Shell connection | Flange (Eyebolt), Tri-clamp |
In-outlet N1, N2 | 2”/2.5”/3”Tri-clamp |

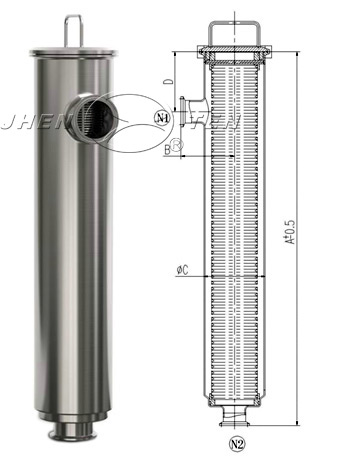

Dimension Parameters | 1cartidge：5”Screen filter | ||
In-outlet 2” | In-outlet2.5” | In-outlet3” | |
A:Total height | 621or 833 | ||
B:The distance from inlet to center | 89 | 108 | 127 |
C:Diameter | Φ129 | ||
D:Height from Inlet N1 to filter cover | 100 | ||
1cartidge：4”Screen filter | |
In-outlet 2” | In-outlet2.5” |
621or 833 | |
89 | 108 |
Φ101.6 | |
100 | |
The above-mentioned data is the standard, it can customize according tocustomer's requirements.
Selection Table
［Qty. of cartridges］ | ［Model of cartridge］ | ［Shell material］ | ［In-outlet Connections］ | ［Dimension］ | ［O-ring］ | ||
JTGTF | 1R | 46 | 4 | K | 20 | E | |
1R=1pc | 46,48, 56, 58 | 4=304 | F=Flange | 20=2” | E=EPDM | ||
Example:46, “4” means diameter is Φ4, “6” means screen filter length is 600 mm | 6=316L | K=Tri-clamp | 25=2.5” | P=PTFE | |||
L=Thread | 30=3” | V=Viton | |||||
S=Silicone | |||||||
